Explosion Proof Fan

- Ventilation Diameter 200 mm - Single Phase 220V - 2800 RPM
SKU #D1143682
View All Explosion Proof Fans
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
CE certified

Product Video

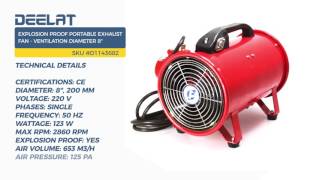

Explosion Proof Portable Exhaust Fan - Ventilation Diameter 8

Feature Video

Explosion Proof Portable Exhaust Fan - Ventilation Diameter 200 mm - Single Phase 220V
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$1,32121
(GST included)
Quantity


Payment Methods

Free shipping on
orders over $550


*Some Restrictions Apply
Payment Methods
Calculate Shipping

General Description

Explosion Proof Fan - Ventilation Diameter 200 mm - Single Phase 220V - 2800 RPM


The explosion proof fan has a ventilation diameter of 200 mm, the voltage is 220V, and it is single phase. It has an air volume of 25 m3/min, and its max RPM rating is 2800 RPMs.

Function
The paint booth exhaust fan is used along with ducts to circulate fresh air or remove unwanted air, and it may also be used to maintain a suitable working temperature. Ducts connect to the ventilator through a strap system. It can be used apart from ducts for the same purposes. The ventilator has an explosion-proof motor and switch, cast aluminum blade, and a flame-proof inner barrel. The pure copper inner barrel also has spark resistance, ensuring safety of operation.

Applications
The hazardous location fans can safely be used in gas stations, chemical industries, metallurgy plants, and for any flammable or explosive environment, due to its explosion proof and spark resistant construction. When used with anti-static ducting, the paint booth exhaust fan is ideal for cleaning air-tight tanks.

Technical Details

Certifications: CE
Type: Portable Explosion Proof Fan
Diameter: 200 mm
Voltage: 220 V
Phases: 1
Frequency: 50 Hz
Wattage: 180 W
Max RPM: 2800 RPM
Explosion Proof: Yes
Air Volume: 25 m3/min
Air Pressure: 245 Pa
Noise: 61 dBA
IP Rating: IP54
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Ivan G.
Jul 24, 2019

Can this be used to vent out fumes for a spray paint booth?

DEELAT fans can be used to vent out fumes for a spray paint booth.

Reply Deelat Industrial on Jul 31, 2019
chris w.
Apr 27, 2020

Can these fans be used to disperse ethanol fumes?

Yes, the explosion proof fan can be used to safely disperse ethanol fumes.

Reply Deelat Industrial on Apr 28, 2020
Markus O.
Aug 05, 2019

Is this product classed by European ATEX standard? I plan to use it on oil tanker for ventilation on ballast tanks and other smaller tanks in gas zone.

The factory where the fans are made doesn't have ATEX certification; however, it does have CNEX certification. This is a classification that allows the fans to be used in hazardous environments.

Reply Deelat Industrial on Aug 06, 2019
Jonathan M.
Jul 30, 2019

Hello! Two quick questions... 1. In the product description the cfm is stated as 55. Then, in the tech details it is listed as 882 cfm. Can you explain which one is true? I may be missing something here. 2. Where I can purchase anti-static ducting to use with this fan? Thanks!

The correct figure is 882 CFM. To purchase anti-static ducting for use with this fan, please refer to our flameproof ducts.

Reply Deelat Industrial on Jul 31, 2019
Dave E.
Feb 16, 2019

Please advise if you have ducting with a “y join” to into ducting to draw from two point thru one fan?

Hi Dave. Yes, we can provide "Y joint" ducting.

Reply Deelat Industrial on Mar 18, 2019
Brian L.
Dec 06, 2017

Can I use this around Welding Fumes, Sparks, Etc?

DEELAT's explosion proof ventilators are designed to be operated in hazardous conditions. It can be used in areas where hazardous gases are found such as mines, tunnels, shipyards, etc.

Reply Deelat Industrial on Dec 06, 2017

Yes, this fan is ideal for your fume and spark criteria. I would also recommend using galvanized or metal ducting and a safe clearance to exhaust out to. Do not use plastic and or vinyl ducting as it can light on fire unless the ducting manufacture states otherwise.

Reply Levi W. on Dec 06, 2017
Abhinandan P.
Dec 25, 2020

What is the weight of this exhaust fan?

Thanks for your question. The weight of this explosion proof ventilator is 29.75 pounds (13.5KG).

Reply Deelat Industrial on Jan 11, 2021
Phil P.
Mar 08, 2019

Can this be used in a spray booth?

The DEELAT exhaust fan can be used in a spray booth.

Reply Deelat Industrial on Mar 20, 2019
Lee H.
Jun 12, 2018

How long of a cord does it come with?

The lead cable that comes with our explosion proof ventilator is roughly 12-14 feet long. The cable is open wired meaning there is no plug at the end.

Reply Deelat Industrial on Jun 12, 2018
Burt A.
Aug 30, 2019

What is the static pressure it produces?

The maximum static pressure produced by the explosion proof exhaust fan is 490 Pa.

Reply Deelat Industrial on Sep 05, 2019
Mark A.
Apr 13, 2021

Can you add some sort of speed controller to this fan??

Yes, you can add a speed/voltage controller that varies the speed, however we don't sell it.

Reply Deelat Industrial on Apr 20, 2021
Gabriel G.
Jan 28, 2018

Does the product come with a storage bag?

DEELAT ventilators do not come with a storage bag. If ordered, you will receive whats found in the photos on the website.

Reply Deelat Industrial on Feb 05, 2018
Victor c.
Sep 14, 2018

Hello, What is the temperature range where this fan can work? and do you have models that allow to be at 120F?

The temperature range for our explosion proof exhaust fans is -20 °C to 60 °C, therefore, this product can endure temperatures of 120 °F (48.9°C).

Reply Deelat Industrial on Sep 17, 2018
Lee H.
Jun 12, 2018

We have a low-fume area where people wear air purifying respirators. Can this be placed inside that environment to move air around for cooling, or does it have to be placed outside the area and have the airflow ducted in?

DEELAT explosion proof ventilators are not really intended to be used for cooling. It has no chiller components so it will not cool the air. The ventilator can be used to bring air into an area by placing the ventilator outside and ducting in the fresh air, or it can be used to extract fumes by placing the portable ventilator in the area where the fumes need to be extracted and duct the fumes out. This is an explosion proof portable ventilator so it is safe to use in hazardous environments with flammable gases/fumes. On a personal note, we use one of these fans in our warehouse, and it does help circulate the air, keeping things cooler.

Reply Deelat Industrial on Jun 12, 2018
Dave Y.
Jul 01, 2019

Do you have the flow rate vs pressure drop curve for these ventilators?

We have uploaded a curve chart for this product page, which you can download as a PDF file. Please refer to the Product Manual PDF on the product page.

Reply Deelat Industrial on Jul 02, 2019
