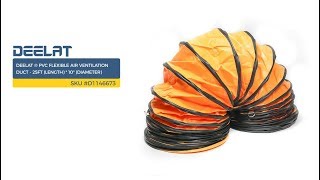

PVC Flexible Duct - 255mm (Diameter) * 7.62M (Length)
Product Video
Feature Video
The 255 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame.
Function
The PVC duct allows air to travel through helix wire-framed ducting, circulating fresh air or removing unwanted air. One end of the flex duct can be attached via strap to a ventilator, and the ducts can be attached to one another, inter-connecting them, using the same strapping method. The PVC fabric of the duct ensures fire-resistance, and the exit end is fortified with a steel collar. The fabric of the duct ensures heat-resistance and can endure aging, burning, and acid.
Applications
These flexible duct products may be used in any environment with damaging chemicals, especially as floor ducting in a laboratory, or as lightweight ventilation in an attic or basement.
Technical Details
| Certifications: | SGS |
|---|---|
| Model: | D1146673 |
| Type: | PVC Flexible Duct |
| Diameter: | 255 mm |
| Length: | 7.62M |
| Fabric: | PVC |
| Heat Resistance: | -20°C and +80°C |
| Maximum Airflow: | 25 m/s |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Receive $100 For contributing to our community
PVC Flexible Duct – 150mm (Diameter) * 4.57M (Length) The 150 mm in diameter PVC duct has a length of 4.57M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
PVC Flexible Duct – 255mm (Diameter) * 7.62M (Length) The 255 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
PVC Flexible Duct – 205mm (Diameter) * 7.62M (Length) The 205 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
PVC Flexible Duct – 100mm (Diameter) * 7.62M (Length) The 100 mm in diameter PVC duct has a length of 7.62 M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
PVC Flexible Duct – 760mm (Diameter) * 7.62M (Length) The 760 mm in diameter PVC duct has a length of 7.62M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Industrial Exhaust Fan - Push-Pull Centrifugal - 710 mm The push-pull centrifugal industrial exhaust fan has a 710 mm fan diameter. The blades are made from stainless steel, the push-pull ligature is made from nylon, and the frame and shutter...
Duct Clamp – Steel - Size 510mm - 10 Pieces The duct clamp is made out of steel and the size is 510mm. A package contains 10 pieces of clamps. Function The screw clamp employs a stainless steel band which wraps around ducting as it makes a...
Cork Underlayment – 4mm thick – 10m long The pure cork underlayment is 4 mm in thickness and is 10 meters long. The color of the underlayment is beige and the material is cork. Function The cork insulation is installed underneath various...
Portable Ventilation Fan - Diameter 250 mm - Single Phase - 220V The vent fan has a ventilation diameter of 250 mm, is single phase, and the voltage is 220V. It has an air volume of 45 cubic meters/min, and its max RPM rating is 2800 RPMs....
PVC Flexible Duct - 100mm (Diameter) * 4.57M (Length) The 100 mm in diameter PVC duct has a length of 4.57 M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
Duct Clamp – Steel - Size 255mm - 10 Pieces The duct clamp is made out of steel and the size is 255mm. A package contains 10 pieces of clamps. Function The screw clamp employs a stainless steel band which wraps around ducting as it makes a...
PVC Flexible Duct - 510mm (Diameter) * 4.57M (Length) The 510 mm in diameter PVC duct has a length of 4.57M and is made out of a PVC material. It is able to endure temperatures between -20°C and +80°C. It is built with a steel wire helix frame....
7.25 Inches
Deelat PVC Flexible Ducts come in a variety of colors. They can be requested in Black, White, Grey, Orange, Yellow, Red, Blue, Green. Please contact our sales support if you require a custom color other than our standard orange,
All ducting diameter measurements refer to the outer diameter or OD.
The weight of the 25' section of the PVC flexible duct is 7.7 kg, or 17 lbs. The weight of a 50' section would be 15 kg, or 33lbs.
Hi Joe. DEELAT does not sell friction loss tables or formulas.
The PVC Flexible Air Ventilation Duct can withstand temperatures ranging from -4°F to 176°F. That being said, temperatures on a stove top can exceed 176°F so we wouldn't recommend using this particular PVC flexible duct. We do offer high temp ducting that would work much better for your application.
Yesm this PVC flexible duct will work as a lawn or leaf vacuum hose.
Yes, our flexible ducts can be used for paint booth applications.
The pressure rating for the flexible duct is 3000 PA.
Yes, our PVC flexible ducts are flexible enough to bend and fit under something. You can find the full stock of our flexible tubes here: Answer
Our standard PVC flexible ducts are not suitable to hold negative pressure. They are rated for positive pressure between 1000-2000pa. Deelat Negative Pressure Ducts are specifically for negative pressure applications.
Hello Dave, thank you for your question. Only our explosion proof ducts have a static pressure rating. Static pressure rating (positive pressure) is 3000 p.a
We offer 6" ducts in 15' and 25' lengths.
The inner diameter of this duct is 30 cm/11.8". If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
All our PVC ducts are coated with a UV rated clear coat giving them sufficient protection against the suns rays.
Yes, the PVC flexible duct can be shortened. You can cut the duct yourself, or else order one suitable to your needs by contacting us directly. A 6ft length would be $12.11.
Deelat PVC flexible ducts can be connected to air conditioning intakes and are commonly used in a variety of HVAC applications. These ducts can withstand temperatures from -20°C to 80°C.
Yes, you can use this duct for your application. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
The PVC flexible ducts are not insulated. To see our selection of insulated ducts, please visit Answer
Yes, our flexible ducts can be used in kitchens. Please contact our customer support to discuss the best size and length for your specific application.
The pitch of the steel band is 20mm. Thanks for your question!
Our flexible ducts come as a default color of orange, however, you can order them in an array of colors. We offer them in Blue, White, Black, Green, and also Red. If you need another color other than orange, please call in your order to our customer support team to make sure the right color is shipped to you.
You can use this duct for commodity fumigation as long as the temperature is between -4°F and +176°F. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
The PVC flexible duct does not have a CFM or FPM rating because these are not normally figures ducts have. However, all our fans have these details provided.
Yes, we can make a custom flexible duct of this size. Please contact our customer service at 1-855-870-1429.
These ducts are available in a variety of colors. Customers can make a special request for Black, White, Grey, Orange, Yellow, Red, Blue, Green. The default color is orange, however if you require a custom color please contact us at 1-888-667-5776.
Our PVC flexible duct is made out of fire retardant PVC fabric with an integrated steel helix frame covered with a rubber strip. This material can withstand temperatures between -4°F to +176°F (-20°C to +80°C), repels oleic acid and water and is tear-resistant. The fabric thickness is 0.3 mm ~ 0.4 mm.
These Flexible ducts are perfect for use as a dog agility tunnel. Our 24" flexible ducts are available in 5, 10, 15 and 25-foot lengths. Please see website for pricing or contact our sales team.
DEELAT Industrial offers custom lengths for any of our ducts but they are made to order and ETA would need to be confirmed.
This 6" duct should work with your portable AC system as long as the outlet/intake connector is 6" or less. The duct is meant to slide over the connector and then tighten over it with the pull string on the end or duct clamp. The duct has no threading.
We do offer our ducts in custom lengths on special request. For custom lengths, the ducts are made to order and can take up to 3-4 weeks to deliver. The stack height for a 9 ft section would be approximately 6 inches when condensed.
There is really no way to prevent mice/rats from chewing threw the PVC flexible ducts. Mice and Rats can pretty much chew through anything in their path. The only way to prevent it is making sure the area in which the flexible ducting is being installed is eradicated of all mice/rats prior to the installation and have pest control do routine follow ups to make sure they didn't return. This is true for any kind of PVC flexible ducting.
The PVC flexible duct has a pull string that will collapse the end of the duct to shrink down to an 8" diameter. We would also recommend adding a duct clamp to secure it better. Even though you can use the 20" duct and collapse the end to a 8" we highly suggest that you use an 8" duct instead.
The flexible duct can be used as a dryer hose, however, its not the intended use for this duct.
You can use this duct for home AC ducting. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
Deelat stocks most varieties and sizes of ducts such as the DEELAT ® PVC FLEXIBLE DUCT - 18" (DIAMETER) * 15FT (LENGTH) however it is best to call our sales team at 1-888-667-5776 or email at sales@deelat.com for up to date stock quantities and delivery times.
You can use the integrated drawstring, a flange or a duct clamp to attach the duct to an air conditioner, return air shaft or ventilator For your application, we recommend using a negative pressure duct, as it may better suit your requirements.
Yes, it can be connected with a square-round duct connector.
Yes, this PVC flexible duct could be used in this situation to stop sawdust from blowing around.
This PVC flexible duct already comes with the connections, so you would not need to buy any supporting pieces for it.
Our factory standard for this PVC flexible duct is B2, which is a higher class rating for flammability than UL 181. The product meets and exceeds that class.
This particular PVC flexible duct might not be able to stand a certain threshold of heat. Please let us know the temperature range of the airflow of the construction furnace so we can ask our supplier to recommend a heat duct that would suit your needs.
Yes, this PVC flexible duct should work for your pool application, as it is chemical resistant, acid resistant and alkali resistant.
The 12" PVC flexible duct would be a little tight on a 12-1/4" diameter pipe. If you would like to request a custom size, please contact us so we can help you better fit your needs.
Yes, this PVC flexible duct is waterproof.
The lead time and availability of the 30" or 36" PVC flexible duct will depend on your local store quantities. Please contact our customer service at 1-888-667-5776 if you would like a personalized timeframe.
Yes, this PVC flexible duct can be used outside.
We do not sell PVC flexible ducting with a 3" diameter on the website, but we do manufacturer custom sizes all the time. Please call us at 1-888-785-2677. Speak soon.
Hi Heather. Thanks for your question. The steel frame cannot be bought separately.
Hi Bill. The weight of the vinyl is 470 grams or 1.03 pounds.
The ducts can be attached to one another to make a longer duct, inter-connecting them. You can connect ends together using a duct clamp.
Hi Dale. If you would like to request a custom size, please contact our sales team so we can help you better fit your needs.
You can but the wire in the duct will prevent you from getting it completely round, the fabric collar on the end of the duct will allow you to reduce it down
Hi Demetrius. Yes, you certainly can connect multiple ducts using a duct clamp.
The thickness of the material in 0.35mm, meaning yes it will be broken if continuously chewed on.
The weight of the vinyl is 470 grams or 1.03 pounds.
Yes, these portable ducts can definitely be used for dog agility tunnels. The have a wire frame helix to maintain shape and they are flexible and durable.
Yes, the duct is suitable to vent fumes of paint.
The 24 inch portable duct has a cuff end with drawstring that is a few inches larger, it will easily fit onto your 26 inch fan.
Our Deelat portable flexible ducts are perfect for exhausting hot air from ac units because they are rated for up to 176F. We have high heat ducts that have a higher heat capacity, however we believe you should be fine with our standard PVC flexible unit.
Yes, the Heat Resistance for PVC Flexible Ducts are between -20°C to +80°C.
Yes, it is resistant to different automotive oils.
The DEELAT PVC flexible ducts are typically used for airflow. However, it's waterproof so that it could be used for water redirection diverting water from a stream.
