Heavy Duty Hinge

- Double Action Spring - 152mm - Stainless Steel, Satin Finish - 1.5mm Thick - 1 Pair
SKU #D1151579
View All Heavy Duty Hinges
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
TUV certified

Product Video

Double Action Spring Hinge - Stainless Steel
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$4059
(GST included)
Quantity


Payment Methods

Free shipping on
orders over $550


*Some Restrictions Apply
Payment Methods
Calculate Shipping

General Description

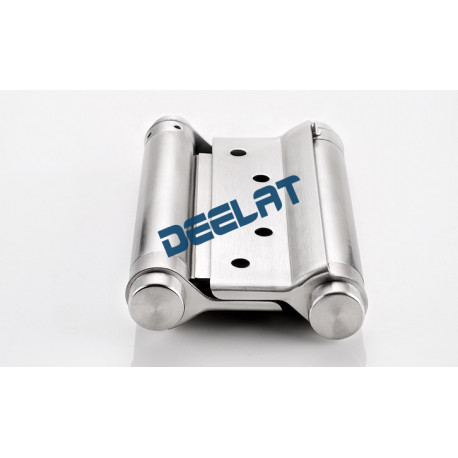

Heavy Duty Hinge - Double Action Spring - 152mm - Stainless Steel, Satin Finish - 1.5mm Thick - 1 Pair


The heavy duty hinge is 152mm in height and made of extra thick and durable stainless steel. It is a double action spring hinge with an attractive satin finish.

Function
The heavy duty hinge connects to the door and door frame, allowing the door to swing both ways. The double action spring hinge allows for 180 degree movement in either direction, and the spring action returns the door to center closed position.

Applications
Deelat’s various types of hinges are installed on doors and lids in household, commercial or other settings to ensure that they open and close smoothly. They can be used to replace existing hinges on doors as well. The spring hinge is ideal for doors or lids that need to remain closed when not in use.

Technical Details

Certifications: UL, CE, TUV
Size: 152x150mm (1.5mm thick)
Type: Double Action Spring
Material: Stainless Steel
Finish: Satin
Best Fit For Door
Door Length: 150 mm
Door Width: 65-75 cm
Quantity: 1 pair
Capacity: 50KG
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Kerrie D.
Mar 21, 2021

I have been gifted a pair of very heavy ex University library doors, approx 100kg each. They are 2.4m tall. They have three existing recesses for hinges. If I use three pairs of these hinges would the door be well supported?

Yan S.
Oct 15, 2019

would these be suitable for exterior use?

Yes, this heavy duty hinge would be suitable for exterior use.

Reply Deelat Industrial on Oct 17, 2019
Penny M.
Mar 05, 2019

I need to replace the hinges on my bench seat on my boat. Will these work? 4" Double Action Spring Hinge - Stainless Steel, Satin Finish 201 - 1.5mm Thick - 1 Pair

Hi Penny, thank you for your question. Unfortunately, this hinge is only designed to be used on interior doors. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Mar 20, 2019
mathew n.
Jan 13, 2019

Do you think 3 or 4 of your double action hinges on the one door would cope with a door about 45kg.

Hello Mathew, thank you for your question. You should have no problems if you use 4 double action hinges. Each set (2) of these double action hinges can handle up to 30KG. 4 hinges for one door would be 60 KG.

Reply Deelat Industrial on Jan 14, 2019
Damian H.
Feb 10, 2021

Do you deliver to the Republic of Ireland?

Yes! We are an online company with multiple distribution warehouses around the world, so we do ship to Ireland! Please call our sales team at +31 (0) 20 262 9718 to complete your purchase. Thanks for your question!

Reply Deelat Industrial on Feb 10, 2021
Robert D.
Nov 25, 2020

Can you confirm that the 90mm dimension is across both wings when open? Is the handing LH so you could open it with your left arm away from you?

Hi, Robert. Yes, it is 90mm across both wings. LH is for the door pull to open and the hinge is on the left side.

Reply Deelat Industrial on Nov 30, 2020
John S.
Sep 15, 2022

Do I need left or right-handed hinges?

The only scenario where you need to worry if you need a left or right hand hinge is in the case of pull off hinges. The reason for this is since you want to be able to pull upwards to take the door off. All other hinge types can simply be turned upside down (flipped 180 degrees) and they will function right or left. Some hinge types don’t even need to be flipped. It really depends on the type of hinge.

Reply Deelat Industrial on Dec 15, 2022
Dale M.
Oct 16, 2022

I have a gate 50mm thick and need double-acting hinges, what size do you recommend?

There are a few factors to consider when purchasing a Deelat Double Action Spring Hinge. The width of the door , the weight of the door, and the placement of the hinge. Deelat sells a Double Action Spring Hinge that has a bolt to bolt width of 38mm and this may work, but you also will be required to bevel the door frame and the door on the edge in order for hinge to sit flush. The short answer is that it will depends on the way you want the hinge to be applied to the door and the doorframe.

Reply Deelat Industrial on Dec 22, 2022
Doug T.
Sep 03, 2019

I need a double action hinge which is 125mm long and fit the door thickness of 40mm.

To fit those measurements, we suggest using a double action heavy duty hinge that is 6" or 8", both of which are available at Deelat. Examples are D1151579 or D1151580.

Reply Deelat Industrial on Sep 06, 2019
Yan S.
Apr 24, 2018

can these be used outside (Canada outside)?

Hello Yan, thank you for your question. These door hinges can be used anywhere there is a door. They are made of high grade stainless steel and can withstand the harshest environments.

Reply Deelat Industrial on Apr 25, 2018
